Immune Checkpoints and Cancer

Taken from the first issue of Biomol Insight: Immune Checkpoints & Immunotherapy Research.

Cancer immunotherapy seeks to use the many components of the immune system to attack cancer cells. More specifically, immunotherapy maximizes the effectiveness of components of the antigen-presentation and antigen-response system, primarily dendritic cells and lymphocytes, respectively. Ideally, this approach can offer more selective killing of cancer cells than other therapeutic modalities, such as chemotherapy.

Immune checkpoint therapy is a form of cancer immunotherapy that centers on lymphocyte signaling, with a current focus on T cells. These cells can be activated to multiply, secrete cytokines, and kill target cells with high selectivity. Activation requires the T cell receptor (TCR) be stimulated by an antigen presented by the major histocompatibility complex (Ag/MHC). Selectivity and strength of activation are regulated by co-stimulatory or inhibitory signals, the immune checkpoints.

The goal of immune checkpoint therapy is to enhance the ability of T cells to kill cancer cells, primarily by tweaking the regulatory checkpoints on T cells. The best-studied examples are co-receptors that suppress TCR-mediated activation of T cells. CTL-associated protein-4 (CTLA-4) is an inhibitory co-receptor on T cells that, when stimulated at the same time as TCR, blocks cell activation. Antibodies selective for CTLA-4 prevent its stimulation, allowing TCR-mediated T cell activation. While this approach has shown some effectiveness in treating cancer in patients, the response is slow and not always selective for cancer cells.1,2 One major problem is that CTLA-4 blockade works early in T cell development, when antigen-presenting cells are activating T cells to proliferate. A better approach is to intervene when T cells meet cancer cells, where TCR-mediated activation initiates cell killing. Programmed death-1 (PD-1) is a lymphocyte receptor that binds PD-L1 or PD-L2. When PD-L1 is expressed on cancer cells, it causes PD-1 to negatively regulate TCR-mediated activation of T cells, limiting their cytotoxic activity. Several antibodies have been developed to block the ability of PD-L1 to interact with PD-1. Clinical trials using these antibodies to antagonize the PD-L1/PD-1 interaction have demonstrated tumor killing that is both specific and long-lasting.3,4 In May 2016, the first PD-L1 inhibitor was approved by the U.S. Food and Drug Administration for the treatment of bladder cancer.

Co-Stimulation-of-TCR-and-CD28

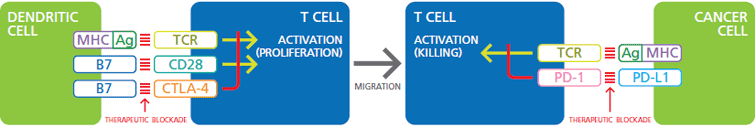

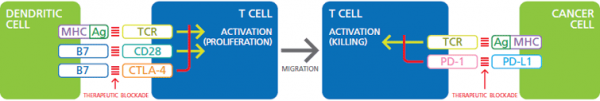

Figure. Co-stimulation of TCR and CD28 on T cells by Ag/MHC and B7 on dendritic cells activates T cells to proliferate and migrate. Negative regulation of TCR by B7:CTLA-4 signaling can be blocked by therapeutic antibodies. Similarly, signaling from Ag/MHC on cancer cells, through TCR, activates killing of cancer cells by T cells. Inhibition of this activation by PD-L1:PD-1 is another target of therapeutic blockade.

Studies using antibodies to block the inhibitory checkpoint receptors CTLA-4 and PD-1 demonstrate the feasibility of this type of immunotherapy. Of course, antibody blockade of PD-1 will only be effective when cancer cells express ligands that stimulate PD-1. Other cancer cells may use different ligands to suppress the immune system. With this in mind, additional inhibitory checkpoints are being identified (Table), and approaches targeting checkpoint activation can also be considered.1,5

In addition to signaling through surface membrane checkpoint proteins, effective therapies target immunosuppression through metabolic pathways, such as indoleamine dioxygenases (IDOs) and arginase, as well as through soluble signaling factors (e.g., TGF-β, adenosine).6 These may be best targeted using traditional small molecule inhibitors. Combination therapies using both antibodies and inhibitors will be a central part of cancer treatment in the future.

Antigen presenting cell
T cell
Ligand/Receptor Also known as
Ligand/Receptor Also known as
CD40 TNFRSF5 CD40L TNFSF5, CD154
TL1A TNFSF15 DR3 TNFRSF25
GITRL TNFSF18 GITR TNFRSF18, CD357
4-1BBL TNFSF9, CD137L 4-1BB TNFRSF9, CD137
OX40L TNFSF4, CD252 OX40 TNFRSF4, CD134
CD70 TNFSF7, CD27L CD27 TNFRSF7
HHLA2 B7-H7 TMIGD2 TNFRSF14
ICOSL B7-H2, CD275 ICOS CD278
CD80 B7-1 CD28
CD86 B7-2
MHC class I, II   KIR
TCR
LAG3 CD223
CD80 B7-1 CTLA-4 CD152
CD86 B7-2
CD80 B7-1 PD-L1 B7-H1, CD274
PD-L1 B7-H1, CD274 PD-1 CD279
PD-L2 B7-DC, CD273
PD-L1 B7-H1, CD274 CD80 B7-1
VISTA (2) B7-H5, SISP1 -
BTNL2 (2)   -
B7-H3 CD276 -
B7-H4 VTCN1 -
CD48 BCM1 -
Phosphatidylserine   TIM-3 (2) HAVcr-2, CD366
Gal9 LGALS9
HVEM TNFRSF14, CD270 BTLA CD272
CD160
LIGHT TNFSF14, HVEML, CD258

Table. Ligand-receptor pairings relevant to immune checkpoint therapy. Pairings that evoke inhibitory signaling are shaded red, while co-stimulatory pairings are shaded green. (Adapted from Mahoney, K.M., Rennert, P.D., Freeman, G.J. Combination cancer immunotherapy and new immunomodulatory targets. Nat. Rev. Drug Discov. 14(8), 561-584 (2015))

References

  1. Pardoll, D.M. The blockade of immune checkpoints in cancer immunotherapy. Nat. Rev. Cancer 12(4), 252-264 (2012).
  2. Farkona, S., Diamandis, E.P., and Blasutig, I.M. Cancer immunotherapy: The beginning of the end of cancer? BMC Med. 14(1), (2016).
  3. Chen, D.S. and Mellman, I. Oncology meets immunology: The cancer-immunity cycle. Immunity 39(1), 1-10 (2013).
  4. Norde, W.J., Hobo, W., van der Voort, R., et al. Coinhibitory molecules in hematologic malignancies: Targets for therapeutic intervention. Blood 120(4), 728-736 (2016).
  5. Collin, M. Immune checkpoint inhibitors: A patent review (2010-2015). Expert Opin. Ther. Pat. 26(5), 555-564 (2016).
  6. Antonia, S.J., Vansteenkiste, J.F., and Moon, E. Immunotherapy: Beyond anti-PD-1 and anti-PD-L1 therapies. Am. Soc. Clin. Oncol. Educ. Book 35, e450-e458 (2016).
