Alizarin-3-methyliminodiacetic Acid

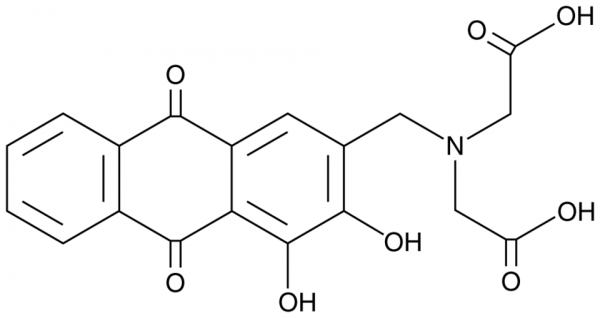

Alizarin-3-methyliminodiacetic acid is a colorimetric dye for the detection of fluoride ions. It reacts with fluoride to form a lilac-blue complex which can be quantified colorimetrically at 620 nm to determine fluoride concentration. Alizarin-3-methyliminodiacetic acid has been used to visualize fluoride deposition and bone mineralization during development in medaka larvae. It is also an inhibitor of inducible nitric oxide synthase (iNOS, IC50 = 35 nM).Formal Name: N-(carboxymethyl)-N-[(9,10-dihydro-3,4-dihydroxy-9,10-dioxo-2-anthracenyl)methyl]-glycine. CAS Number: 3952-78-1. Synonyms: Alizarin Complexone, Alizarin Fluorine Blue, NSC 293056. Molecular Formula: C19H15NO8. Formula Weight: 385.3. Purity: >95%. Formulation: (Request formulation change), A crystalline solid. Solubility: DMF: 10 mg/ml, DMSO: 10 mg/ml, DMSO:PBS (pH 7.2) (1:7): 0.125 mg/ml. lambdamax: 249, 429 nm. SMILES: O=C1C2=C(C(O)=C(O)C(CN(CC(O)=O)CC(O)=O)=C2)C(C3=C1C=CC=C3)=O. InChi Code: InChI=1S/C19H15NO8/c21-13(22)7-20(8-14(23)24)6-9-5-12-15(19(28)16(9)25)18(27)11-4-2-1-3-10(11)17(12)26/h1-5,25,28H,6-8H2,(H,21,22)(H,23,24). InChi Key: PWIGYBONXWGOQE-UHFFFAOYSA-N.
